Industrial Grade
Wireless Environmental Sensing Solution UbiBot GS1



No subscription fee





Now Compatible with  Aplikacja IFTTT



Rejestrator przemysłowy Ubibot GS1

Embedded RJ45*, worry-free network connection

The GS1 offers a more stable network connection and ensures constant data synchronisation via integrated RJ45 interface*. For environments without a WiFi network, Ethernet cable gives you another option to access wireless data monitoring.



Połączenie z internetem rejestratora GS1


* Depending on the specific model purchased.

Tailored solutions for business customers

We designed UbiBot GS1 for industrial usage. To ensure better connection and higher performance, we use large capacity lithium battery for long standby time, integrate external antenna for stable WiFi connection, and embed the device with RS485 interface for multiple types of external probes.

Antena GS1
Rejestrator GS1 typ C
Akumulator GS1
Wodoodporny rejestrator Ubibot GS1
Przemysłowy rejestrator GS1 z WiFi
Alerty GS1
podswietlany wyswietlacz LCD GS1
Czujniki w rejestratorze Ubibot GS1
czujniki GS1
Chmura IT GS1

Extensive use, more than you can imagine

Thanks to the built-in RS485 interface, you can use GS1 with multiple probes in various industry fields. The large and bright LCD screen supports display of the external probe readings in order when more than one probes connected. Altogether 4 probes can be connected at a time, one of each type. Please avoid using TH30S-B and CO2 probe at the same time because they are not compatible.





wiele czujników zewnętrznych do GS1

GPS location tracking function

With the GS1-PL4G1RS, thanks to the built-in GPS with active external antenna, it is possible to monitor moving refrigerated vehicles not only in terms of temperature control, but also their physical location. The route of a cooling vehicle can be recorded and transmitted to the IoT platform via a mobile data network.





UbiBot GS1 recording the GPS route on the map

Lithium battery powered, longer standby time

To offer business customers a more suitable solution, we use a 2900 mAh lithium battery for the GS1 device. Combined with low-power technology, the device has longer standby time for constant monitoring. It can be charged by type-C USB cable with 2A input, fast and time-saving. Rechargeable battery is also more environmental-friendly.

akumulator GS1 o duzej pojemnosci

Device connected to the network, data available at your fingertips

The GS1 device can connect to the network via RJ45 Ethernet cable as well as WiFi and mobile data. It measures environmental data in 24/7 at the custom pace you set. Then it uploads and stores them securely in the private channels on UbiBot platform. No matter where you are, you can view the sensor readings anytime on our app or the web console.





Połączenie GS1 przez platformę danych



* Depending on the specific model purchased.

Specifications

GS1-A GS1-AL4G1RS GS1-PL4G1RS GS1-AETH1RS

Data logger UbiBot GS1-A

Data logger GS1-AL4G1RS



Data logger UbiBot GS1-PL4G1RS

Data logger UbiBot GS1-AETH1RS

Size and Weight

Size and Weight

Size and Weight

Size and Weight

Length: 5.98'' (152mm)
Height: 3.54'' (90mm)
Width: 2.16'' (55mm)
Weight: 436g ± 3g

Length: 5.98'' (152mm)
Height: 3.54'' (90mm)
Width: 2.16'' (55mm)
Weight: 475g ± 3g

Length: 5.98'' (152mm)
Height: 3.54'' (90mm)
Width: 2.16'' (55mm)
Weight: 528g ± 3g

Length: 5.98'' (152mm)
Height: 3.54'' (90mm)
Width: 2.16'' (55mm)
Weight: 474g ± 3g

Screen

Screen

Screen

Screen

4'' LCD with backlight

4'' LCD with backlight

4'' LCD with backlight

4'' LCD with backlight

Integrated Sensors

Integrated Sensors

Integrated Sensors

Integrated Sensors

temperature: -4℉ to 140℉ (-20℃ to 60℃)
accuracy: ±0.3℃ ①
humidity: 10% to 90%
accuracy: ±3% RH

temperature: -4℉ to 140℉ (-20℃ to 60℃)
accuracy: ±0.3℃ ①
humidity: 10% to 90%
accuracy: ±3% RH
ambient light: 0.01 to 83K lux
accuracy: ±2%

temperature: -4℉ to 140℉ (-20℃ to 60℃)
accuracy: ±0.3℃ ①
humidity: 10% to 90%
accuracy: ±3% RH
ambient light: 0.01 to 83K lux
accuracy: ±2%

temperature: -4℉ to 140℉ (-20℃ to 60℃)
accuracy: ±0.3℃ ①
humidity: 10% to 90%
accuracy: ±3% RH
ambient light: 0.01 to 83K lux
accuracy: ±2%

Power Supply

Power Supply

Power Supply

Power Supply

built-in lithium battery can be charged by Type-C USB, DC (5V-12V) charger

built-in lithium battery can be charged by Type-C USB, DC (5V-12V) charger built-in lithium battery can be charged by Type-C USB, DC (5V-12V) charger built-in lithium battery can be charged by Type-C USB, DC (5V-12V) charger, Ethernet cable (POE splitter needs to be purchased separately)
Mobile App
Mobile App

Mobile App

Mobile App

iOS 11+, Android 8.1+, or Windows 7+, or OS X v10.8+ iOS 11+, Android 8.1+, or Windows 7+, or OS X v10.8+

iOS 11+, Android 8.1+, or Windows 7+, or OS X v10.8+

iOS 11+, Android 8.1+, or Windows 7+, or OS X v10.8+

Internal Memory Internal Memory

Internal Memory

Internal Memory

300,000 sensing records 300,000 sensing records

300,000 sensing records

300,000 sensing records

WiFi Information WiFi Information WiFi Information WiFi Information

Supports 20MHz or "Auto" setting.
WiFi security: OPEN mode, WEP and WPA/WPA2.
Note: WPA2-Enterprise (802.1x / RADIUS authentication) is not supported.
Requires 2.4GHz (802.11 b / g / n), channels 1-13 network

(5GHz WiFi is NOT supported)

Supports 20MHz or "Auto" setting.
WiFi security: OPEN mode, WEP and WPA/WPA2.
Note: WPA2-Enterprise (802.1x / RADIUS authentication) is not supported.
Requires 2.4GHz (802.11 b / g / n), channels 1-13 network

(5GHz WiFi is NOT supported)

Supports 20MHz or "Auto" setting.
WiFi security: OPEN mode, WEP and WPA/WPA2.
Note: WPA2-Enterprise (802.1x / RADIUS authentication) is not supported.
Requires 2.4GHz (802.11 b / g / n), channels 1-13 network

(5GHz WiFi is NOT supported)

Supports 20MHz or "Auto" setting.
WiFi security: OPEN mode, WEP and WPA/WPA2.
Note: WPA2-Enterprise (802.1x / RADIUS authentication) is not supported.
Requires 2.4GHz (802.11 b / g / n), channels 1-13 network

(5GHz WiFi is NOT supported)

Mobile Network Mobile Network

Mobile Network

Mobile Network

- LTE-FDD: B1 / B3 / B5 / B8
LTE-TDD: B34 / B38 / B39 / B40 / B41
GSM: 900 / 1800MHz

LTE-FDD: B1 / B3 / B5 / B8
LTE-TDD: B34 / B38 / B39 / B40 / B41
GSM: 900 / 1800MHz

-

Global Navigation Satellite System
Global Navigation Satellite System

Global Navigation Satellite System

Global Navigation Satellite System

-
-

GPS, GLONASS, BeiDou / Compass, Galileo, QZSS<2.5m (CEP-50 Autonomous@open sky)

-

Ethernet Cable (RJ45)
Ethernet Cable (RJ45)

Ethernet Cable (RJ45)

Ethernet Cable (RJ45)

-
-

-

supports Auto Negotiation (Full and half duplex, 10 and 100-based)



Device Setting: the minimum device sync interval (upload) is 1 minute, and minimum sensing interval is 1 minute (Temperature, Humidity, Light, External Probe and Battery Voltage).

Alert Types: supports APP push notifications, email, SMS text, phone call alerts and audible alerts. Alerts can be set on numeric- based sensor readings and network status (e.g. when connection is lost or batteries are low). All alerts are sent from the UbiBot Cloud.



① The sensor precision might fluctuate slightly in actual usage because of environment condition, deployed position, etc. See user guide for detailed parameters.

* Depending on the specific model purchased. See table below.

⚠️The device is not waterproof.

Compare the four GS1 models

We designed four versions of the GS1 to fit different demands of various use cases: WiFi only, WiFi and SIM card, WiFi and RJ45 cable. Each of them are unique but also share the same high performance.





UbiBot® Network GPS Built-in Sensors Rechargeable Battery Life External RS485 port  Waterproof
& Dustproof
External Ports

rejestrator temperatury i wilgotności wifi sim GS1

GS1-A

WiFi

No

Temperature
Humidity

4-6 months No IP65 USB Type C (power supply)
rejestrator temperatury i wilgotności wifi sim GS1
GS1-AL4G1RS
WiFi / Mobile Data

No

Temperature
Humidity
Ambient light

4-6 months (WiFi only)
or 3-6 weeks (sync via SIM)
Yes IP65 USB Type C (power supply, RS485 external probe, external audible alarm)
rejestrator temperatury i wilgotności wifi sim GS1
GS1-AETH1RS
WiFi / RJ45 Ethernet cable

No

Temperature
Humidity
Ambient light

3-5 days Yes No USB Type C (power supply, RS485 external probe, external audible alarm)
rejestrator temperatury i wilgotności wifi sim GS1
GS1-PL4G1RS
WiFi / Mobile Data

Yes

Temperature
Humidity
Ambient light

1-2 weeks (GPS)
Yes IP65 USB Type C (power supply, RS485 external probe, external audible alarm)



The GS1 series of devices (excluding GS1-A) support only RS485 interface probes, such as: TH30S-B probe, Soil temperature and moisture sensor, PT-100 temperature probe, wind speed sensor, CO2 probe, etc.

Video UbiBot GS1



International Certificates

UbiBot devices have received multiple certifications, including CE, FCC, IC, RCM and RoHS. We also comply with all relevant standards for GSM and WiFi devices. Compliance with these regulations enables UbiBot devices to be sold in many major markets including the US and EU. We are actively seeking additional certifications in order to further widen our market.

Certificate CE for GS1 data logger
CE
Certificate FCC for GS1 data logger
FCC
Certificate ROHS for GS1 data logger
RoHS
Certificate IC for GS1 data logger
IC
Certificate RCM for GS1 data logger
RCM

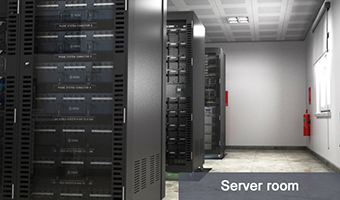

Monitorowanie temperatury i wilgotności w serwerowni

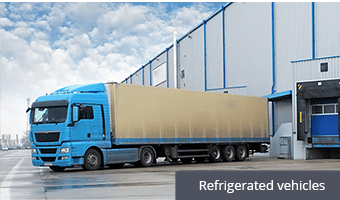

GS1 in the cold chain
Monitorowanie temperatury i wilgotności w magazynie

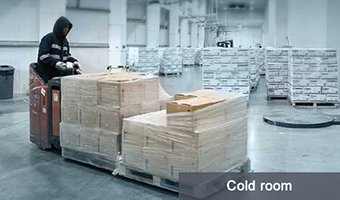

Monitorowanie temperatury i wilgotności w chłodni i mroźni
Monitorowanie temperatury i wilgotności w szklarni

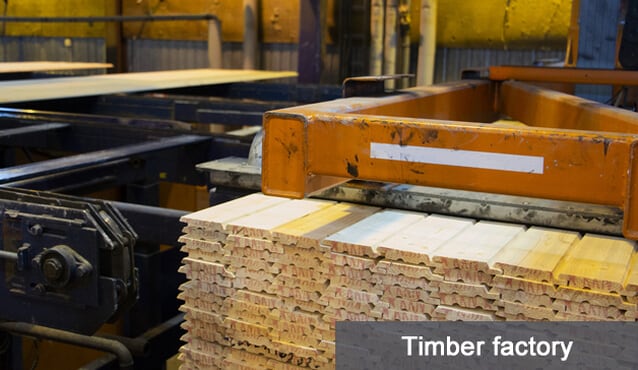

monitorowanie temperatury i wilgotności w fabryce drewna
