Wireless Motion Sensor

with alarm via WiFi and LAN

Free access to data over the Internet





Compatible with  Aplikacja IFTTT

Motion sensor WiFi MS1

WiFi and Ethernet

The MS1 motion sensor supports WiFi connection, and the MS1-P model supports WiFi and LAN/Ethernet communication (RJ45 socket). When installed at a wide field of view, the motion detector can precisely detect even small movements of people or animals. The motion logger sends data to the IoT UbiBot® platform, which allows you to view and download them at any time and place.

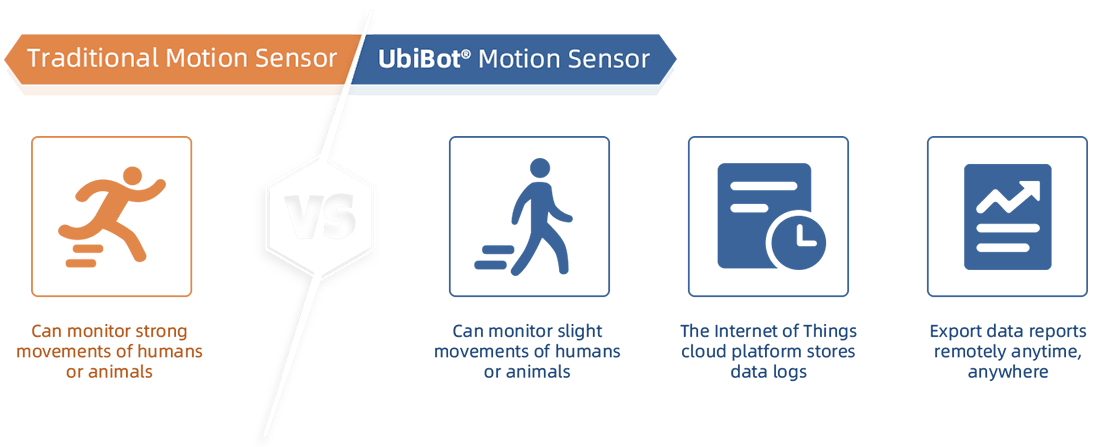

Motion sensor MS1 detects slight movements* Depending on the specific model purchased

PoE support, data transfer stability

You can power the MS1P model with an Ethernet cable (Power over Ethernet). It enables more convenient installation, stable operation and trouble-free real-time data updates. The device can also be powered from a 230V power grid and via USB. Different communication and power options allow you to adapt to different monitoring environments, reducing the amount of cabling needed.





Various power options for the device

Multi-channel alerts for greater security

MS1 supports various warning rules and modes via the IoT platform for remote supervision. The operating status of the device is visible at all times. An efficient, intelligent sensor algorithm effectively reduces the number of false alarms.

Alarms configurable on the IoT platform
Alarms configurable on the IoT platform
Real-time alerts
Real-time
notifications
Various MS1 alarm mode options
Various alarm
mode options
MS1 status notifications
Online/offline status notifications
False alarm rate
Low false
alarm rate

Internet of Things and data in the IoT cloud

The UbiBot® MS1 motion detector can be connected to the IoT data platform using a wireless WiFi or RJ45/Ethernet cable*. The movement data of people or animals collected by the built-in sensor are transmitted in real-time and are available on mobile phones, tablets, computers and other Internet devices.





Sensor connected to the Internet of Things



*Only MS1P model

Technical specifications

MS1 MS1-P

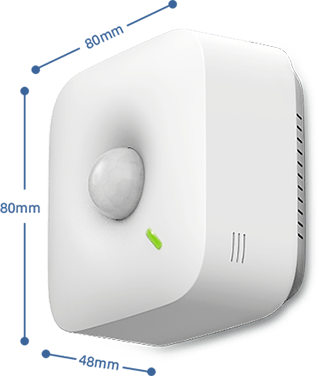

Technical data of UbiBot MS1 motion sensor

Technical data of UbiBot MS1 motion sensor

Size and weight

Size and weight

Length: 80mm
Height: 80mm
Width: 48mm
Weight: 76g (±2g)

Length: 80mm
Height: 80mm
Width: 48mm
Weight: 128g (±2g)

Display

Display

none, only the LED

none, only the LED

Integrated sensors

Integrated sensors

Motion sensor: 12m operating range

Detection angle: vertical 40 degrees, horizontal 105 degrees

Motion sensor: 12m operating range

Detection angle: vertical 40 degrees, horizontal 105 degrees

Operating conditions

Operating conditions

Operating temperature: 0°C to 50°C

Operating temperature: -10°C to 50°C

Power supply

Power supply

Micro USB

Micro USB / POE / mains 230 VAC
Software

Software

iOS 11+, Android 8.1+, or Windows 7+, or OS X v10.8+

iOS 11+, Android 8.1+, or Windows 7+, or OS X v10.8+

Internal memory

Internal memory

None

None

WiFi information WiFi information

WiFi channel: 20MHz and "Auto" mode

WiFi security: OPEN, WEP and WPA/WPA2, WPA2-Enterprise mode (802.1x / RADIUS authentication)

WiFi channels: 2.4GHz band (802.11 b/g/n), channels 1-13

(note: the 5GHz WiFi band is NOT supported)

WiFi channel: 20MHz and "Auto" mode

WiFi security: OPEN, WEP and WPA/WPA2, WPA2-Enterprise mode (802.1x / RADIUS authentication)

WiFi channels: 2.4GHz band (802.11 b/g/n), channels 1-13

(note: the 5GHz WiFi band is NOT supported)

Mobile Network

Mobile Network

Not supported Not supported
Global Navigation Satellite System

Global Navigation Satellite System

Not supported Not supported
Ethernet cable (RJ45)

Ethernet cable (RJ45)

Not supported

Auto Negotiation (Full/half duplex, 10/100)



Device settings: The minimum synchronization interval of the device (data transfer to the server) is 1 minute.

Types of alarmsSupport for push notifications in applications for smartphones and tablets, e-mails, text messages and information by phone calls. The alerts can be triggered based on recorded values from sensors and the state of the network or power supply (e.g. in case of connection loss or power failure). All notifications are sent automatically from the UbiBot IoT Cloud.



① The precision of the sensor may be subject to slight fluctuations in use due to environmental conditions, layout, etc. Please refer to the operating instructions for details.

* Depending on the model purchased.

⚠️ The devices are not waterproof.

Easy to install, elegant look

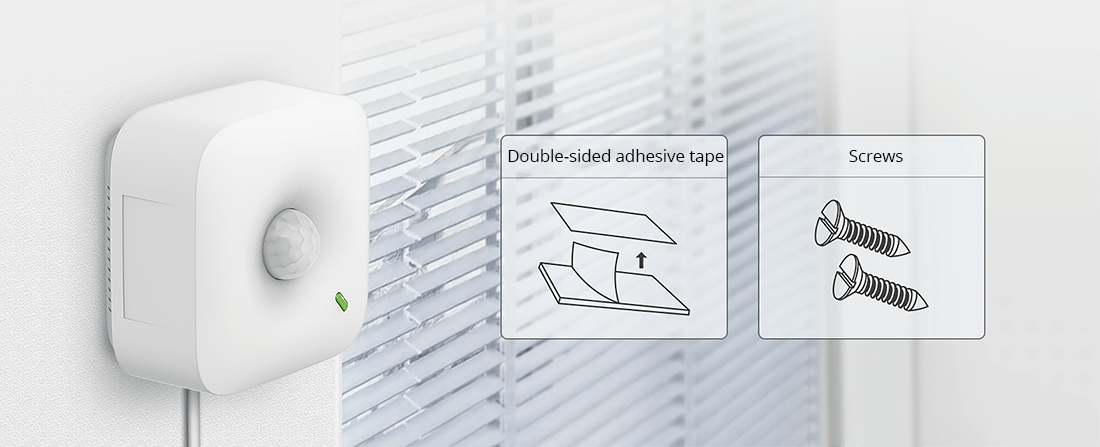

The MS1 motion detector can be placed loosely in the monitoring area, can be glued to the surface of a smooth wall with double-sided adhesive tape or can be suspended from the border with screws. The body of the product is matt with a warm white colour that fits most rooms.



  Installation of UbiBot MS1 sensor on the wall

International Certificates

UbiBot devices have received multiple certifications, including CE, FCC, IC, RCM and RoHS. We also comply with all relevant standards for GSM and WiFi devices. Compliance with these regulations enables UbiBot devices to be sold in many major markets including the US and EU. We are actively seeking additional certifications in order to further widen our market.

certyfikacja rejestratora ws1-CE
CE
certyfikacja rejestratora ws1-FCC
FCC
certyfikacja rejestratora ws1-RoSH
RoSH
certyfikacja rejestratora ws1 CB
IC
certyfikacja rejestratora ws1-RCM
RCM

Applications

The UbiBot® MS1 motion detector connected to the IoT platform via WiFi or POE/Ethernet cable can notify about the danger using an alarm sent to a mobile phone. It can work as an intelligent counter. In combination with the smart plug UbiBot® SP1, it can switch on the light or trigger an alarm as soon as it detects motion in the monitoring area. Users can create their action scenarios through integration with the Internet of Things via the publicly available IFTTT platform.

Automatic switching of the light by the motion detector
Automatic switching of light
MS1 installed in the room automatically switches the light on/off based on detected movement (requires UbiBot WiFi Smart Plug SP1 or a plug from another manufacturer compliant with IFTTT).
Motion detection
Monitoring of premises
Immediate security alert when motion is detected in a room, warehouse, office or home by SMS, email and smartphone notifications.
Monitoring of animals in the house and flat
Monitoring of pets
MS1 notifies the user about animal movements in home. Every time a dog or cat leaves the room, the platform sends an alarm to the owner's phone.
